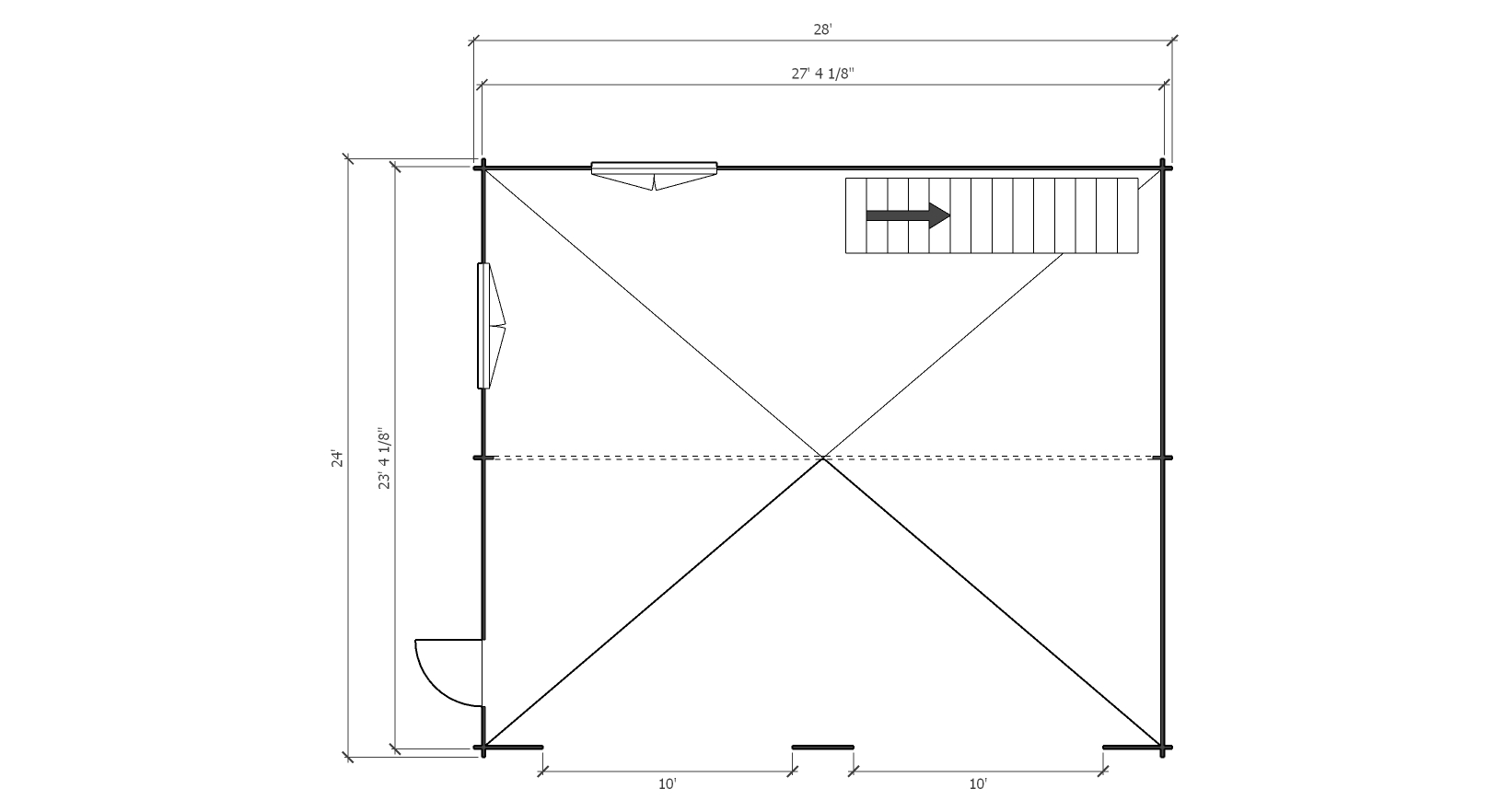

The G2428 building kit includes:

  • treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
  • 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components

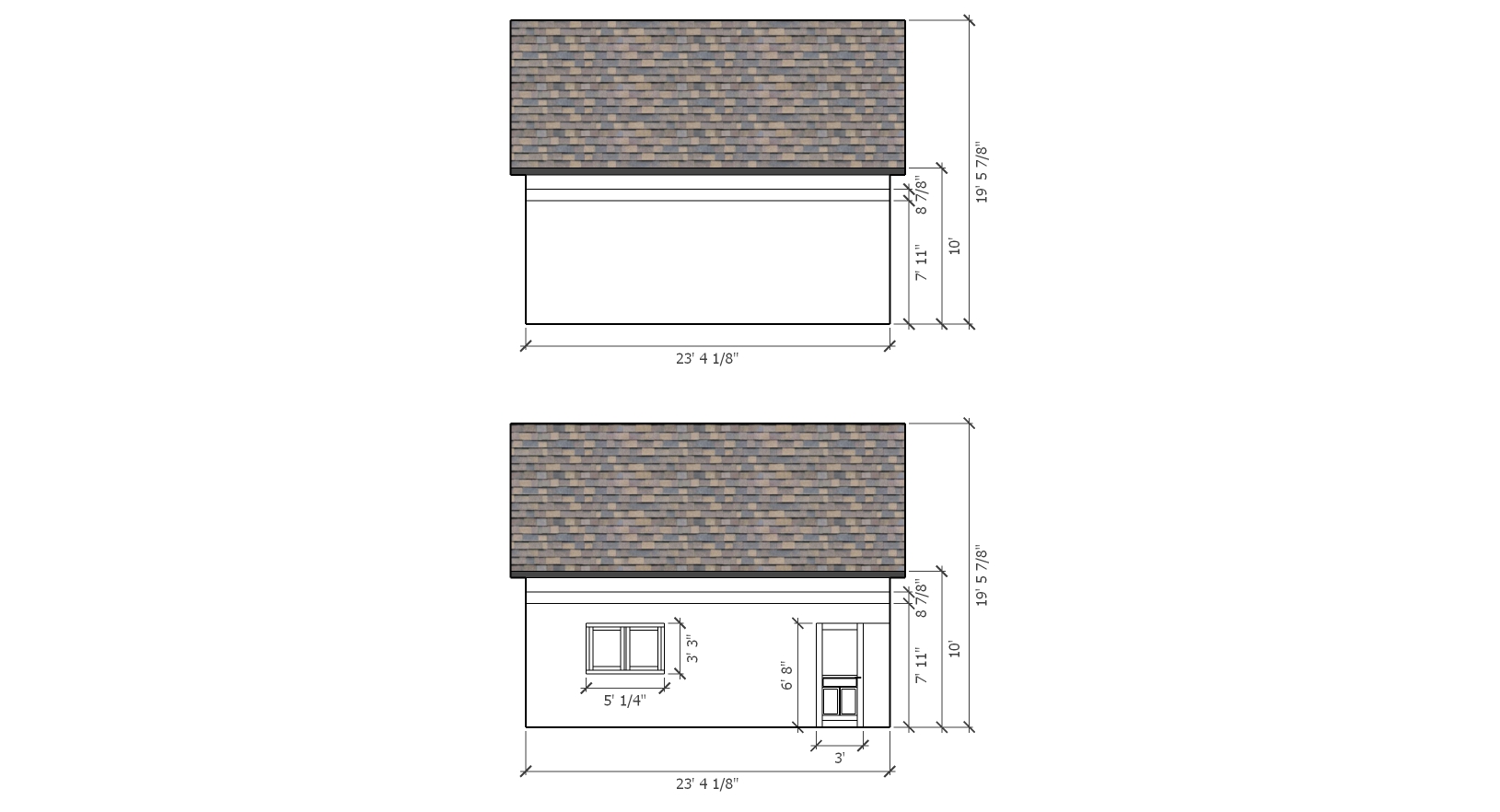

  • sidewall height 95″ (2413mm) to underside of loft floor beams
  • loft ladder
  • 2 ¾” x 9 ¼” (70mm x 235mm) glulam floor beams
  • 2 ¾” x 9 ¼” (70mm x 235mm) glulam roof purlins
  • roof overhang 12” (300mm)
  • center gable in loft with opening
  • metal joist/purlin hangers for center gable
  • pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards

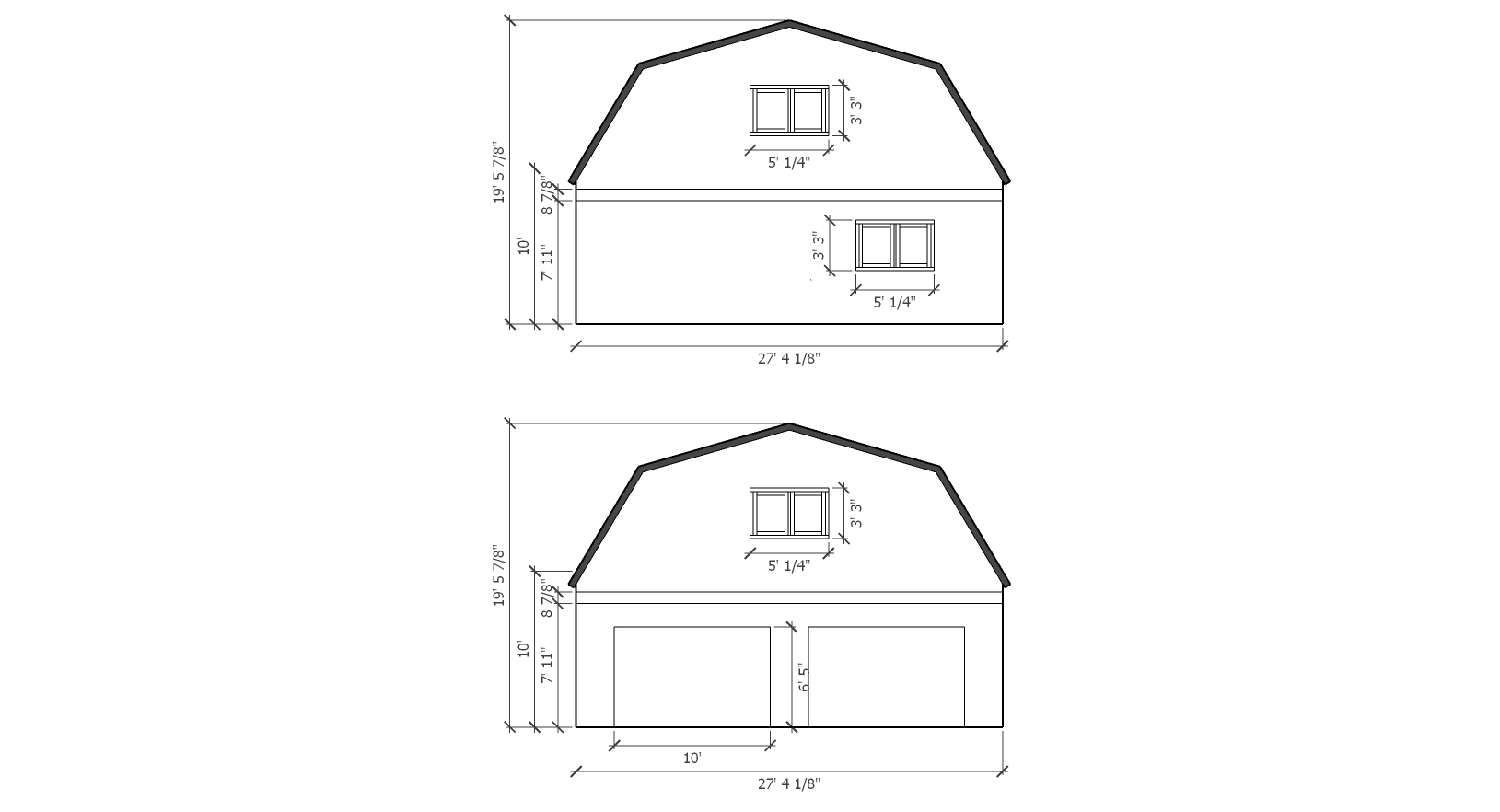

  • 4 – double wide wood windows 60″x39″ (1530mm x 990mm)
  • 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
  • 947 sq’ of exterior wall surface
  • 104 lineal’ per row
  • 1600 – 6″ log screws to connect each row, gable components, purlins



Note: Stamped structural engineering included in price when a siding kit is purchased and applied. The vertical studs are required to meet structural requirements for building codes. Studs and siding can be purchased locally.

*Overhead garage doors not included
